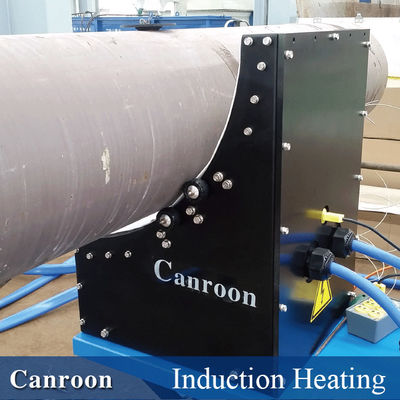

Induction Heating Machine for Welding Fabrication & Preheating

380V 3-Phase Induction Heating Machine For Welding Fabrication

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

The CR2000 induction preheater is an advanced air-cooled heating system designed for welding preheat and industrial fabrication. Capable of reaching temperatures up to 1450°F, it delivers rapid and uniform heating through multiple output channels and six control thermocouples. Compared with conventional heating methods, the CR2000 achieves significantly faster heat-up times and higher process efficiency.

The system features an intuitive operator interface that supports programmable ramp-up and hold cycles, enabling precise temperature control for various applications. It also provides guided operation to help users maximize coil performance and ensure consistent heating quality across different workpieces.

Applications:

With the introduction of theInduction Heating Machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on

Specifications:

Competitive Advantage:

1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.
